Scale Computing

The Virtualization Platform with simplicity, availability and scalability

Scale Computing is a developer and manufacturer of unified, scale-out storage solutions tailored to the virtualization and archiving needs of the small and medium-sized business (SME). The entire Scale portfolio is based on its uniquely flexible Intelligent Clustered Operating System (ICOS) technology.

HC3 OneTouch^™ Provisioning - in a matter of minutes, you have all the resources provisioned to have your environment up and running.
HC3 OneTouch^™ Configuration - Rapidly configure your resources to match your applications using our automated, easy to use web portal.
HC3 OneTouch^™ Deployment - Once you've provisioned and configured, just set the thresholds your business needs, and HC3 does the rest for you.

Scale Computing Platform for Edge Computing

SC Platform is a complete platform for running applications at the edge, with all of the software, hardware, and services needed.

Regardless of your hardware requirements, the same innovative software, SC//HyperCore, and industry-first SC//Fleet Manager give you the power to run infrastructure efficiently at scale.

HC3 Virtualization Platform

Simplified, highly-automated infrastructure that keeps your apps and business running.

They combined servers, storage, and virtualization into a single solution to make IT infrastructure easier for organizations of every size. It doesn’t matter if you have hundreds of IT administrator or hundreds – or just one. Scale’s award winning HC3 hyperconverged infrastructure eliminates complexity, lowers costs, and frees up management time.

Using an appliance-based approach to virtualization, Scale’s HC3 infrastructure solution is easier to manage, faster to deploy and allows you to scale seamlessly as your organization grows.

HC3 Edge Solutions

Self-healing, right-sized infrastructure that runs critical apps, right where they’re needed.

With edge computing, you can run applications and process data outside centralized data centers, at the edge of your network closest to where that data is created and utilized. Centrally monitor and manage hundreds or thousands of distributed edge infrastructure deployments with few or no on-site IT personnel.

HC3 Cloud Unity

Connect your HC3 system to the cloud to protect your critical assets.

Hardware

HC3 is available on a variety of hardware platforms to meet all your needs.

HC3 brings together virtualization, servers, storage, and backup/disaster recovery into a single solution, eliminating the need for third-party components or licensing. The result is a highly efficient virtualization infrastructure that’s easy to use and effortless to maintain, producing substantial cost savings in both the short and long term.

Appliances

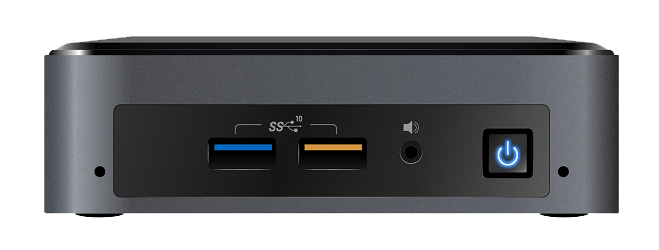

HE150 Series

The HE150 appliances are designed for small-scale data center infrastructure, for edge computing, for remote sites, and for disaster recovery.

	HE150
CPU: Intel® Core	i3-10110U 2C/4T 2.1GHz/4.1GHz, i5-10210U 4C/8T 1.6GHz/4.2GHz, i7-10710U 6C/12T 1.1GHz/4.7GHz
RAM	8GB, 16GB, 32GB, 64GB Type: DDR4
STORAGE	1 x M.2 NVMe 250GB, 500GB, 1TB, 2TB
NETWORK	1 x 1GbE
Dimensions	1.5” (38mm) H x 4.6” (117MM) W x 4.4” (112mm) D
Power	1 x 90W Power Supply Unit

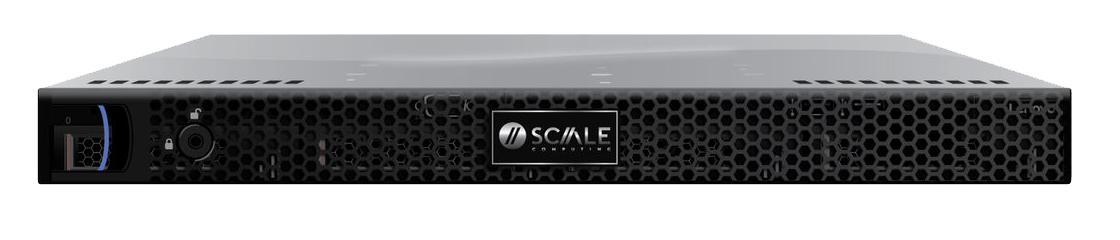

The HE500 series appliances are designed for edge computing, small remote sites, and for disaster recovery.

	HE500	HE550	HE550F	HE500T	HE550TF
CPU: Intel® Zeon® E-2100	1 x E-2124 4C/4T 3.3GHz, 1 x E-2134 4C/8T 3.5GHz, 1 x E-2136 6C/12T 3.3 GHz	1 x E-2124 4C/4T 3.3GHz, 1 x E-2134 4C/8T 3.5GHz, 1 x E-2136 6C/12T 3.3 GHz	1 x E-2124 4C/4T 3.3GHz, 1 x E-2134 4C/8T 3.5GHz, 1 x E-2136 6C/12T 3.3 GHz	1 x E-2124 4C/4T 3.3GHz, 1 x E-2134 4C/8T 3.5GHz, 1 x E-2136 6C/12T 3.3 GHz	1 x E-2124 4C/4T 3.3GHz, 1 x E-2134 4C/8T 3.5GHz, 1 x E-2136 6C/12T 3.3 GHz
RAM	Size: 16GB, 32GB, 64GB Type: DDR4	Size: 16GB, 32GB, 64GB Type: DDR4	Size: 16GB, 32GB, 64GB Type: DDR4	Size: 16GB, 32GB, 64GB Type: DDR4	Size: 16GB, 32GB, 64GB Type: DDR4
STORAGE	4 x HDD 1TB, 2TB, 4TB, 8TB	1 x SSD 480GB, 960GB; 3 x HDD 1TB, 2TB, 4TB	4 x SSD 240GB, 480GB, 960GB	4 x HDD 1TB, 2TB, 4TB, 8TB; 8 x HDD 4TB, 8TB	4 x SSD 240GB, 480GB, 960GB
NETWORK	4 x 1GbE; 4 x 10GbE SFP+	4 x 1GbE; 4 x 10GbE SFP+	4 x 1GbE; 4 x 10GbE SFP+	2 x 1GbE*	2 x 1GbE*
DIMENSIONS	1U Rack Height: 1.7” (43mm) H x 17.1” (434mm) W x 19.6” (498mm) D	1U Rack Height: 1.7” (43mm) H x 17.1” (434mm) W x 19.6” (498mm) D	1U Rack Height: 1.7” (43mm) H x 17.1” (434mm) W x 19.6” (498mm) D	17” (430mm) H x 6.9” (175mm) W x 22.3” (565.7mm) D	17” (430mm) H x 6.9” (175mm) W x 22.3” (565.7mm) D
POWER	2 x 450W Power Supply Units	2 x 450W Power Supply Units	2 x 450W Power Supply Units	2 x 550W Power Supply Units	2 x 550W Power Supply Units
CERTIFICATIONS	UL/CB, CE, FCC	UL/CB, CE, FCC	UL/CB, CE, FCC	UL/CB, CE, FCC	UL/CB, CE, FCC
Notes:				*Single node configuration only	*Single node configuration only

hc1200

HC1000 Series

The HC1000 series appliances are designed for data center infrastructure, for edge computing, for remote sites, and for disaster recovery.

	HC1200	HC1250	HC1250D	HC1250DF
CPU: Intel® Xeon® Scalable Proc.	1 x Bronze 3204 6C/6T 1.9GHz; 1 x Silver 4208 8C/16T 2.1GHz	1 x Silver 4208 8C/16T 2.1GHz; 1 x Silver 4210 10C/20T 2.2GHz; 1 x Gold 6242 16C/32T 2.8GHz	2 x Silver 4208 8C/16T 2.1GHz; 2 x Silver 4210 10C/20T 2.2GHz; 2 x Gold 6230 20C/40T 2.1GHz; 2 x Gold 6242 16C/32T 2.8GHz; 2 x Gold 6244 8C/16T 3.6GHz	2 x Silver 4208 8C/16T 2.1GHz; 2 x Silver 4210 10C/20T 2.2GHz; 2 x Gold 6230 20C/40T 2.1GHz; 2 x Gold 6242 16C/32T 2.8GHz; 2 x Gold 6244 8C/16T 3.6GHz
RAM	Size: 64GB, 96GB, 128GB, 192GB, 256GB, 384GB; Type: DDR4	Size: 64GB, 96GB, 128GB, 192GB, 256GB, 384GB; Type: DDR4	Size: 128GB, 192GB, 256GB, 384GB, 512GB, 768GB; Type: DDR4	Size: 128GB, 192GB, 256GB, 384GB, 512GB, 768GB; Type: DDR4
NL-SAS STORAGE	4 x 1TB, 2TB, 4TB, 8TB, 12TB	3 x 1TB, 2TB, 4TB, 8TB, 12TB	3 x 1TB, 2TB, 4TB, 8TB, 12TB
SSD STORAGE		1 x 480GB, 960GB, 1.92TB, 3.84TB, 7.68TB	1 x 960GB, 1.92TB, 3.84TB, 7.68TB	4 x 960GB, 1.92TB, 3.84TB, 7.68TB
NETWORK	4 x 10GBase-T bonded active/passive, 4 x 10GbE SFP+ bonded active/passive	4 x 10GBase-T bonded active/passive, 4 x 10GbE SFP+ bonded active/passive	4 x 10GBase-T bonded active/passive, 4 x 10GbE SFP+ bonded active/passive	4 x 10GBase-T bonded active/passive, 4 x 10GbE SFP+ bonded active/passive
DIMENSIONS: 1U Rack Height	1.7” (43mm) H x 17.2” (437mm) W x 25.6” (650mm) D	1.7” (43mm) H x 17.2” (437mm) W x 25.6” (650mm) D	1.7” (43mm) H x 17.2” (437mm) W x 25.6” (650mm) D	1.7” (43mm) H x 17.2” (437mm) W x 25.6” (650mm) D
POWER	2 x 500W Power Supply Units	2 x 500W Power Supply Units	2 x 750W Power Supply Units	2 x 750W Power Supply Units
CERTIFICATIONS	UL/CB, CE, FCC	UL/CB, CE, FCC	UL/CB, CE, FCC	UL/CB, CE, FCC

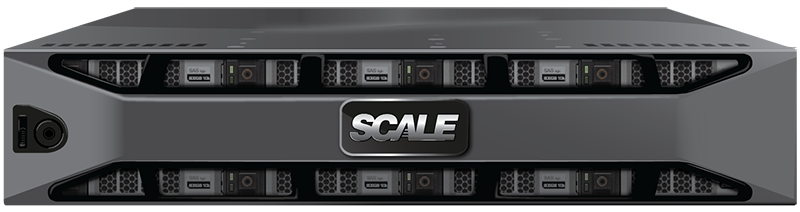

HC5000 Series

	HC5200	HC5250D
CPU: Intel® Xeon® Scalable Proc.	1 x Silver 4208 8C/16T 2.1GHz; 1 x Silver 4210 10C/20T 2.2GHz; 1 x Gold 6230 20C/40T 2.1GHz	2 x Silver 4208 8C/16T 2.1GHz; 2 x Silver 4210 10C/20T 2.2GHz; 2 x Gold 6230 20C/40T 2.1GHz; 2 x Gold 6242 16C/32T 2.0GHz
RAM	Size: 64GB, 96GB, 128GB, 192GB, 256GB, 384GB; Type: DDR4	Size: 128GB, 192GB, 256GB, 384GB, 512GB, 768GB, 1024GB, 1536GB; Type: DDR4
NL-SAS STORAGE	12 x 8TB, 12TB	9 x 4TB, 8TB, 12TB
SSD STORAGE		3 x 960GB, 1.92TB, 3.84TB, 7.68TB
NETWORK	4 x 10GBase-T bonded active/passive, 4 x 10GbE SFP+ bonded active/passive	4 x 10GBase-T bonded active/passive, 4 x 10GbE SFP+ bonded active/passive
DIMENSIONS: 2U Rack Height	3.4” (87mm) H x 17.5” (445mm) W x 28.3” (720mm) D	3.4” (87mm) H x 17.5” (445mm) W x 28.3” (720mm) D
POWER	2 x 1100W Power Supply Units	2 x 1100W Power Supply Units
CERIFICATIONS	UL/CB, CE, FCC	UL/CB, CE, FCC
